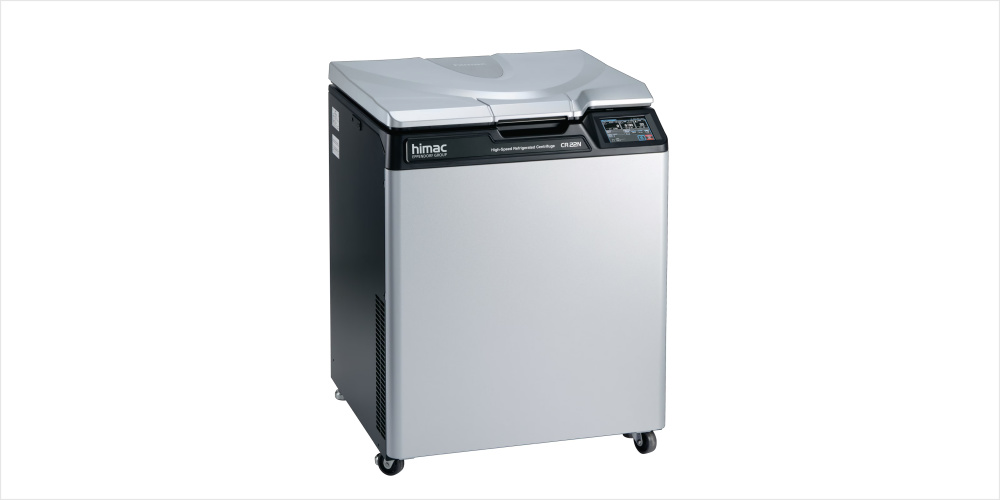

HIGH-SPEED REFRIGERATED CENTRIFUGE
Model:
CR22N
Location:
E4-3F-R326/E4-3F-R357
equipment introduction:
Whether your work requires harvesting of biomass in volumes of up to 6 L per run, pelleting of cells, subcellular organelles or larger viruses, or extraction, precipitation, concentration and purification of nucleic acids in up to 50 mL tubes, the Centrifuge CR22N is the optimal solution to support your everyday centrifugation tasks.
Technical specifications:
| Model | Centrifuge CR22N |
| Max. RCF | 58,700 x g* |
| Max. speed | 22,000 rpm |
| Speed range | 300 – 22,000 rpm |
| Max. capacity | 1.5 L x 4 (Rotor R9A2) |
| Acceleration/ Breaking ramps | 9/9 |
| Number of programs | 30 |
| Display | 5.7-inch color touch-sensitive LCD panel |
| Noise Level | 64 dB(A) at 1 m front |
| Power Supply | Single-phase, AC 200/208/220/230/ 240 V +/– 10%, 50/60 Hz, 30 A |
| Footprint (WxDxH) | 700 x 760 x 915 mm / 27,5 x 30 x 36 in |
| Height (with open lid) | 1,510 mm / 59,4 in |
| Weight | 260 kg / 573 lbs |
| Refrigerator | Rotary inverter driven compressor (Refrigerant: R410A) |
| Temperature control range | -20 to + 40 °C |
| Safety functions | Interlock door, overspeed detection, imbalance detector, over-temperature detector |
| User lockout function | yes |
