All-In-One Imaging System
Model:
ChemiDoc MP
Location:
E4-3F-R359
equipment introduction:

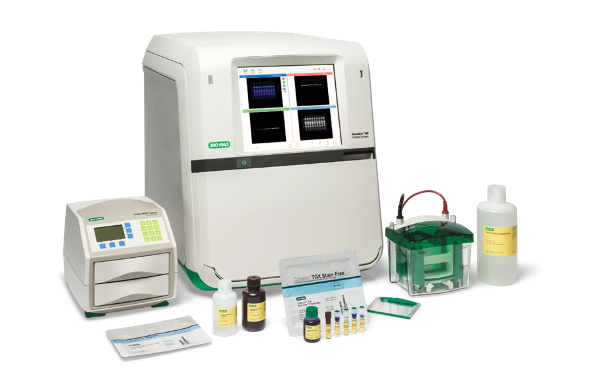

The ChemiDoc MP imaging system is a full-feature instrument for gel or western blot imaging. It is capable of imaging multiplex fluorescent western blotting, chemiluminescence detection, and general gel documentation applications, including all common nucleic acid and protein gel stains, plus stain-free gels.
Technical specifications:
| Automation Capabilities | |
| Smart Tray Technology™
|
Automatic recognition of application-specific tray and adjustment of imaging parameters and software options |
| Autofocus | Precalibrated focus for any zoom setting or sample height |
| Auto-exposure | Two user-defined modes (rapid or optimal auto-exposure) for all blot and gel imaging applications |
| Image flat fielding | Dynamic; precalibrated and optimized for each application |
| Hardware | |
| Touch-screen functionality | Multitouch capability (2 points) 12.1″ display |
| Maximum image area (W x H) | 21 x 16.8 cm |
| Detector | Cooled CCD, 6 megapixels |
| Dynamic range | >4 orders of magnitude |
| Illumination sources | Trans-UV, 302 nm excitation Epi-white Trans-white (requires White Sample Tray) Trans-blue, 450−490 nm excitation (requires Blue Sample Tray) Epi-blue, 460−490 nm excitation Epi-green, 520−545 nm excitation Epi-red, 625−650 nm excitation Epi-far red, 650−675 nm excitation Epi-near IR, 755−777 nm excitation |
| Filter and application | 590/110 nm standard filter to perform protein and DNA gel and blot imaging Chemiluminescence filter 518–546 nm filter for blue-excitable fluorophores and stains 577–613 nm filter for green-excitable fluorophores and stains 675–725 nm for red-excitable fluorophores and stains 700–730 nm filter for far red-excitable fluorophores and stains 813–860 nm for near IR-excitable fluorophores and stains590/110纳 |
| Data output | 16-bit or 8-bit: SCN, TIFF, JPEG files |
| Weight | 35 kg (78 lb) |
| Instrument size (L x W x H) | 61 x 51 x 53 cm |
| Operating voltage | 100–250 V |
| Operating temperature | 10–28°C |
| Operating humidity | 10–85% relative humidity (non-condensing) |
