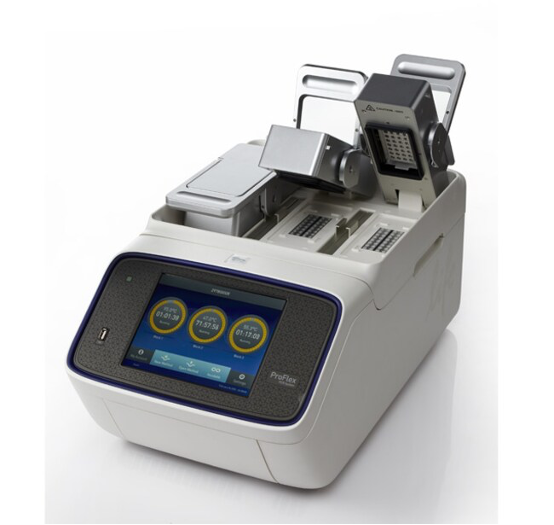

ProFlex™ 3x32 孔 PCR 系统 ProFlex™ PCR System
Model:
ProFlex 3×32
Location:
E4-3F-R346
equipment introduction:
The ProFlex™ PCR System is an end-point thermal cycler, specifically designed for the amplification of nucleic acids using the Polymerase Chain Reaction (PCR) process. The user interface includes a touchscreen with a graphical display that shows the time, status, and temperature for each run. A touchscreen keypad allows you to enter information into fields on the display screen.
Technical specifications:
| Module specifications | Interchangeable |
| Caloric accuracy | ±0.25°C (35°C to 99.9°C) |
| High throughput capacity | Compatible with high-throughput applications |
| Heat uniformity | <0.5°C (20 seconds after reaching 95°C) |
| Reaction speed | Fast, standard |
| Size | 56.5 x 33 x 27 cm (22 x 13 x 10.6 in.) |
| Capacity | 32 x 0.2 mL PCR tube/module or 4 x 8 row 0.2 mL PCR tube/module |
| Voltage | 100 to 240 V |
| Display type | 8.4-inch color TFT LCD touch screen |
| Product type | Thermal circulator |
| Warranty period | Limited warranty |
| Heat range | 0°C to 100°C |
| Applicable to (application) | PCR. |
| Procedure | Automatic restart (after power outage), program rewrite protection |
| User interface | USB, WiFi, Cloud, Ethernet |
| Maximum temperature change rate | 6°C/s (module), 4.4°C/s (sample) |
| Store | USB and on-board |
| Weight | 18.8 kg (41 lb.) |
| Module configuration | 3 x 32 holes, 2 zones VeriFlex module |
| Unit size | 1 instrument |
