Stereo fluorescence microscopy
Model:
ZOOM600FL
Location:
E4-3F-R356
equipment introduction:

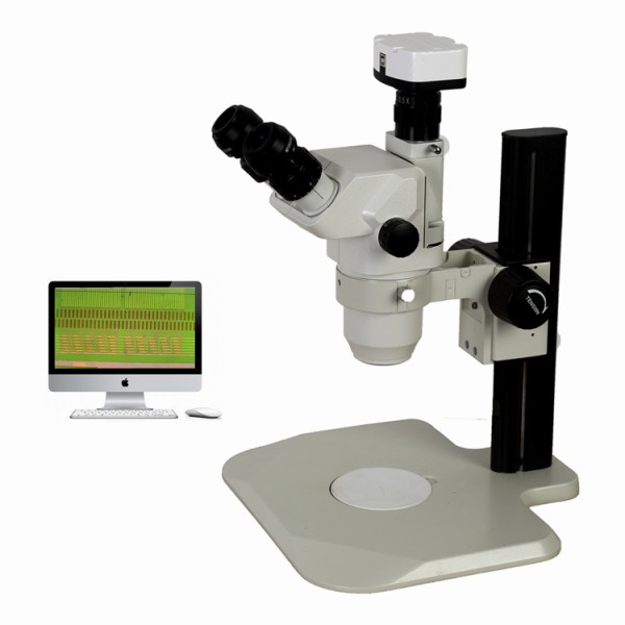

ZOOM600 apochromatic parallelistic stereo microscope to detect and analyze various target structures and morphologies, high-quality imaging can be obtained.
Technical specifications:
| Main machine parameters | parallel optical path system： Brightfield and fluorescence
Magnification range: 8×~56× Eyepiece: 10×/22, diopter adjustable Reflective transmitted light base with bracket, light source brightness and 360°angle can be adjusted Objective lens 1×APO objective, WD=90mm; |
| Fluorescent components | Ultraviolet module: excitation wavelength peak≥ 360nm;
BFP Module: BP, excitation wavelength peak≥ 395nm; Bandwidth≤ 25nm mCherry module: BP, excitation wavelength peak≥ 530nm; Bandwidth≤ 35nm GFP module: BP, excitation wavelength peak≥475nm; Bandwidth≤ 35nm |
| Light source, LED life is not less than 20000 hours | Dual-branch LED cold light source, suitable for observing opaque samples.
LED transmissive light source, suitable for observing transparent samples LED fluorescent light source. LED oblique lighting and vertical lighting |
| Imaging system | USB, TF, HDMI and other output methods
Not less than 1920*1080@30FPS Built-in measurement and analysis software, not less than WIN10 system The pixel size is not less than 2.4*2.4μm |
