Trans-Blot® Turbo™ Transfer System
Model:
Trans-Blot Turbo
Location:
E4-3F-R346
equipment introduction:

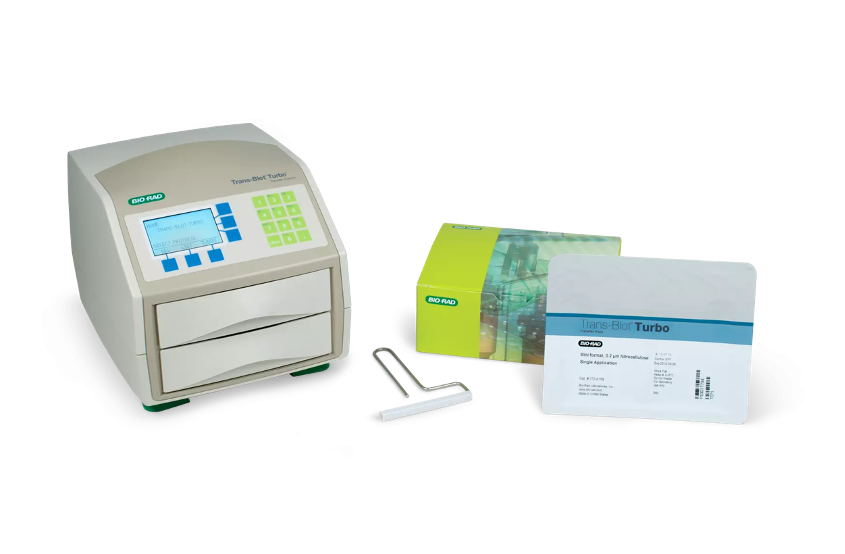

The Trans-Blot Turbo Transfer System includes everything you need to perform fast, high-efficiency semi-dry blotting protein transfers.
Features and Benefits：
*Quality protein transfer in 3 min — transfer 1–4 mini gels or 1–2 midi gels in a single run
*Higher transfer efficiency than other protein blotting methods
*Faster and more efficient transfer than wet tank blotting
Technical specifications:
| Dimensions: (Lx W x H) 26.0 x 21.1 x 20.4 cm
|
| Weight: 8 lb with cassettes, 4.5 lb without cassettes |
| Input power: 100-240 VAC, 276 VA, 50 60 Hz, 175 W max |
| Fuses: TWO 6.3 A, 250 V, fuses located above the power connection |
| On/off switch: Yes, mains connectec |
| USB port: Yes, input only, for firmware updates |
| Cooling fan: Yes |
| Output power: 0-26 VAC (1 V increments), 0-2.6 A DC (0.1 A increments) for each cassette |
| Operating conditions: 15-31°C ambient temperature, 0-95% relative humidity |
| Note: User protocol settings are limited to 1-25 V (1 V increments), 1-2.5 A (0.1 A
increments) |
